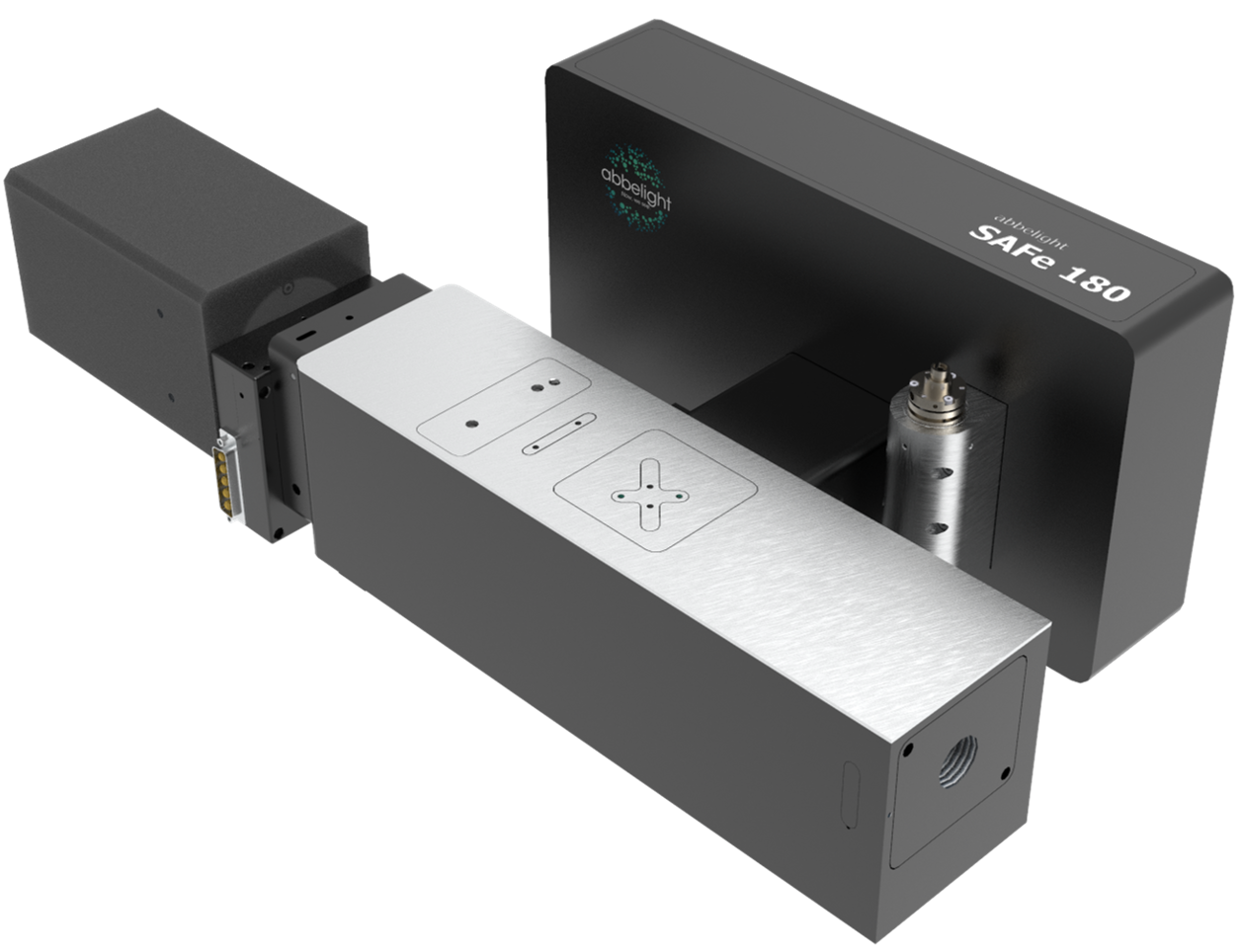

SAFe 180

evolutive system

Ask for a demoProduct sheetGallery
SAFe 180 is an illumination system developed by abbelight for high-throughput 2D single-molecule and TIRF imaging.

It can be connected to any camera port of any inverted microscope to provide a very large homogeneous illumination for an affordable price.

> NEW< It can be completed with the latest optronic bay abbelight SAFe Nexus, an all-in-on solution to control and synchronize the complete abbelight SAFe solution.

The ultimate
2D nanoscope

  • Super-resolution imaging modes
    PALM,dSTORM, PAINT, SPT…
  • Illumination modes
    automatic switching from EPI, HiLo to TIRF
  • The largest homogeneous 2D Field Of View
    150 x 150 µm²
  • Low power laser needed
    abbelight SAFe light technology
  • 3D option with astigmatism
    capture range ~ 600nm
  • >NEW< abbelight SAFe Nexus is an Optronic Bay for abbelight SAFe instrument
    all in one solution to control and synchronize the complete safe system
All in one: Electronics, workstation and laser combiner in one single solution for simple and secure integration with SAFe instruments
Powerful electronics and workstation: Guarantees efficient control and synchronization of the complete SAFe module
Flexible and modular: Mix and match different color laser sources for specific studies
Safe: Closed-box laser alignment for eye-safe adjustments
ic_imaging

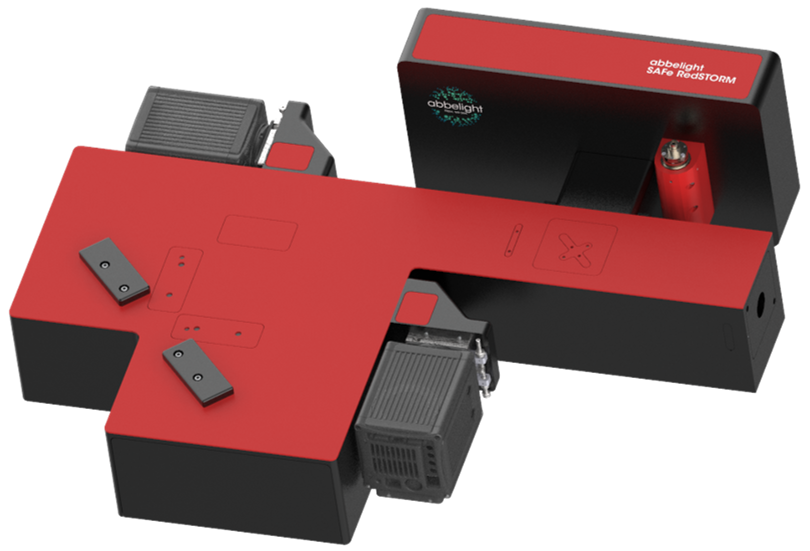

SAFe RedSTORM

Simultaneous multi-color dSTORM imaging at the nanoscale

Ask for a demoProduct sheetGallery
Webinar
SAFe RedSTORM ​is a unique system dedicated to high-quality​ simultaneous multicolor dSTORM imaging. It is based on the SAFe 360 structure, but it has only one mission: Highly stable, dedicated, and straightforward super-resolution solution for simultaneous multi-color dSTORM imaging.

>NEW< It can be completed with the latest optronic bay abbelight Safe Nexus, an all-in-on solution to control and synchronize the complete abbelight SAFe solution.

Simultaneous multi-color dSTORM imaging at the nanoscale

  • Add-on adaptable to any inverted microscope
    right/left/rear camera port
  • The largest field of view
    150 x 150 µm²
  • Unique simultaneous multicolor imaging
    Up to 3 colors and no chromatic aberrations thanks to spectral demixing
  • Cost effective and robust solution
    Use only one 640nm laser to image up to 3 dyes simultaneously in STORM
  • >NEW< abbelight SAFe Nexus is an Optronic Bay for abbelight SAFe instrument
    all in one solution to control and synchronize the complete safe system
All in one: Electronics, workstation and laser combiner in one single solution for simple and secure integration with SAFe instruments
Powerful electronics and workstation: Guarantees efficient control and synchronization of the complete SAFe module
Flexible and modular: Mix and match different color laser sources for specific studies
Safe: Closed-box laser alignment for eye-safe adjustments
ic_imaging

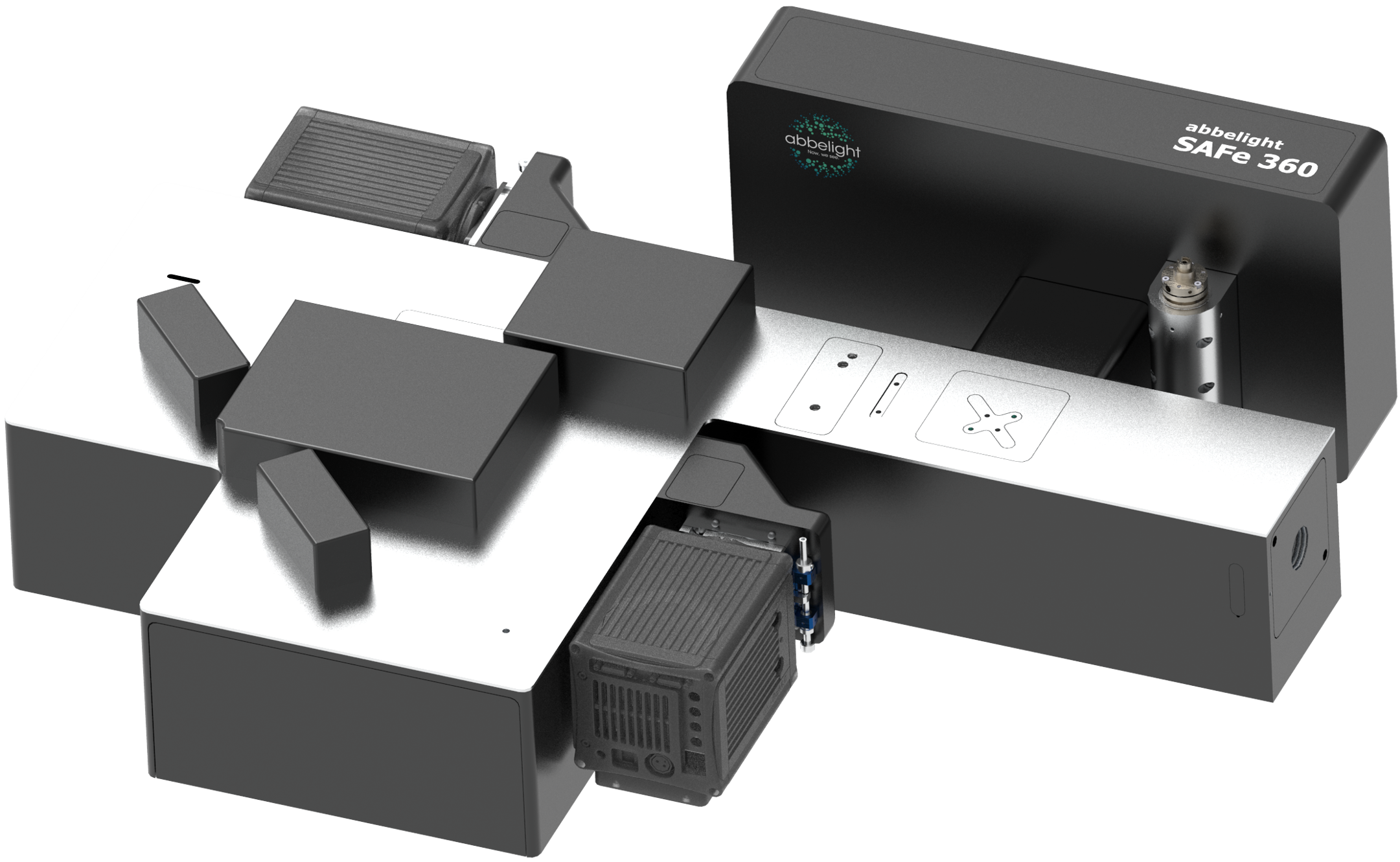

SAFe 360

capture the evanescence

Ask for a demoProduct sheetGallery
SAFe 360 combines SAFe 180 illumination to a dual camera detection to achieve unprecedented 3D single-molecule and multi-color imaging.

SAFe technology corrects artefacts from 3D single-molecule detection and its extremely large field of view transform any type of inverted microscope into a first-class high-throughput multimodal microscope.

>NEW< It can be completed with the latest optronic bay abbelight Safe Nexus, an all-in-on solution to control and synchronize the complete abbelight SAFe solution.

The ultimate evolutive
3D nanoscope

  • ALL SAFe180 features

  • The highest isotropic 3D localization precision
    15 x 15 x 15 nm
  • The largest field of view
    150 x 150 µm²
  • Extended axial range with nanometer accuracy
    Up to 5 µm
  • Simultaneous multicolor nanoscopy
    in EPI, TIRF up to 4 colors
  • Spectral demixing
    unique simultaneous multicolor imaging for dSTORM without aberration
  • >NEW< abbelight SAFe Nexus is an Optronic Bay for abbelight SAFe instrument
    all in one solution to control and synchronize the complete safe system
All in one: Electronics, workstation and laser combiner in one single solution for simple and secure integration with SAFe instruments
Powerful electronics and workstation: Guarantees efficient control and synchronization of the complete SAFe module
Flexible and modular: Mix and match different color laser sources for specific studies
Safe: Closed-box laser alignment for eye-safe adjustments
